1. Navigation Tree

2. Page Design

2.1. Main Page (<fusedoc>)

2.1.1. Summary

This page will allow the user to edit the attributes of the main <fusedoc> element

2.1.2. Attribute → Control Mapping

Attribute	Control Type	Notes
fuse	text box	The value for this attribute should be auto-generated based on the name of the current file.
version	text box
language	text box

2.1.3. Other UI Controls

This page has no extra UI Controls

2.1.4. Prototype

2.2. Properties Page (<properties>)

2.2.1. Summary

This page will display a tabbed container which has 3 tabs that allow for creating/editing <history>, <property>, and <note> elements

2.2.2. Attribute → Control Mapping

No attributes will be directly set on this page

2.2.3. Other UI Controls

Description	Control Type	Notes
Properties tabs	Tabbed container	Container for the Histor, Properties, and Notes tabs

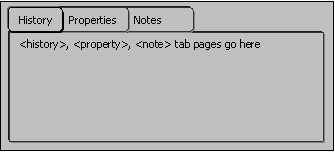

2.2.4. Prototype

2.2.5. History Tab (<history>)

2.2.5.1. Summary

Will display a list of all existing <history> elements and allow the user to add new elements, edit existing elements, or remove existing elements

2.2.5.2. Attribute → Control Mapping

Attribute	Control Type	Notes
<history> element list	table view	Contains the following columns: Type Date Author Role Email
description text display	multi-line text box	Read-Only display of the history description
New button	push button	Opens the “New <history>” dialog
Edit button	push button	Opens the edit dialog for the curently selected element in the list. Should be disabled if no element is selected
Remove button	push button	Removes the currently selected element in the list. Should be disabled if no element is selected

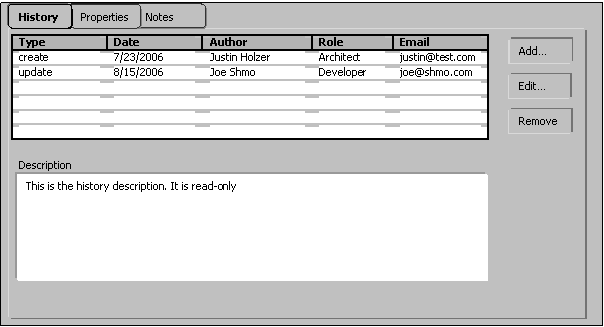

2.2.5.3. Prototype

2.2.6. Add/Edit History Dialog

2.2.6.1. Summary

Will allow the user to add or edit a <history> element

2.2.6.2. Attribute → Control Mapping

Attribute	Control Type	Notes
type	dropdown	Choices: create update
date	calendar control	Should default to the current date
author	text box
role	text box
email	text box
description	multi-line text box
OK button	push button	Posts the changes and closes the dialog
Cancel button	push button	Cancels the add or edit operation and closes the dialog

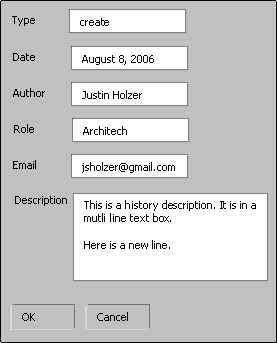

2.2.6.3. Prototype

2.2.7. Properties Tab (<property>)

2.2.7.1. Summary

Will display a list of all existing <property> elements and allow the user to add new elements, edit existing elements, or remove existing elements

2.2.7.2. Attribute → Control Mapping

Attribute	Control Type	Notes
<property> element list	table view	Contains the following columns: name value
New button	push button	Opens the “New <history>” dialog
Edit button	push button	Opens the edit dialog for the curently selected element in the list. Should be disabled if no element is selected
Remove button	push button	Removes the currently selected element in the list. Should be disabled if no element is selected

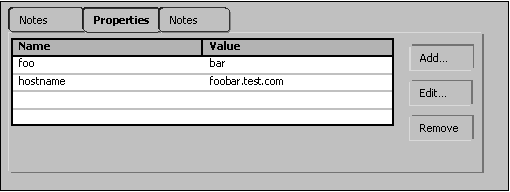

2.2.7.3. Prototype

2.2.8. Add/Edit Property Dialog

2.2.8.1. Summary

Will allow the user to add or edit a <property> element

2.2.8.2. Attribute → Control Mapping

Attribute	Control Type	Notes
name	text box
value	text box
OK button	push button	Posts the changes and closes the dialog
Cancel button	push button	Cancels the add or edit operation and closes the dialog

2.2.8.3. Prototype

2.2.9. Notes Tab (<note>)

2.2.9.1. Summary

Will display a list of all existing <note> elements and allow the user to add new elements, edit existing elements, or remove existing elements

2.2.9.2. Attribute → Control Mapping

Attribute	Control Type	Notes
<note> element list	table view	Contains the following columns: Author Date
note text display	multi-line text box	Read-Only display of the note text
New button	push button	Opens the “New <history>” dialog
Edit button	push button	Opens the edit dialog for the curently selected element in the list. Should be disabled if no element is selected
Remove button	push button	Removes the currently selected element in the list. Should be disabled if no element is selected

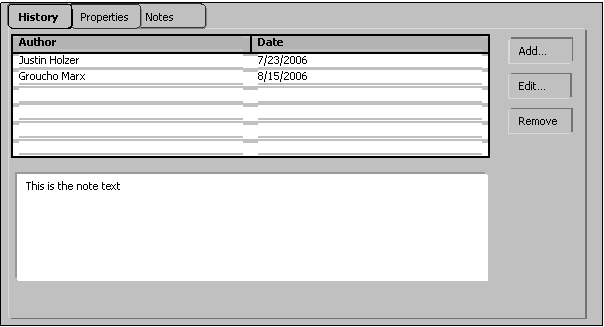

2.2.9.3. Prototype

2.2.10. Add/Edit Note Dialog

2.2.10.1. Summary

Will allow the user to add or edit a <note> element

2.2.10.2. Attribute → Control Mapping

Attribute	Control Type	Notes
author	text box
date	calendar control	Should default to the current date
note	multi-line text box
OK button	push button	Posts the changes and closes the dialog
Cancel button	push button	Cancels the add or edit operation and closes the dialog

2.2.10.3. Prototype
